Quadricyclane（278-06-8）

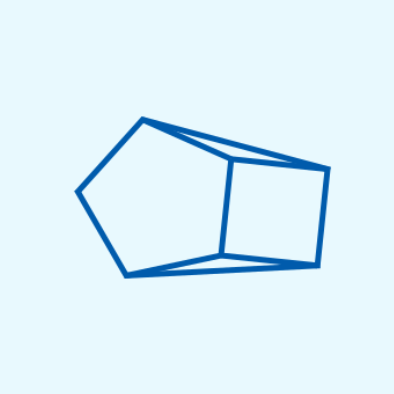

Quadricyclane (CAS: 278-06-8), chemically named tetracyclo[3.2.0.0²,⁷.0⁴,⁵]heptane, has the chemical formula C₇H₈ and a molecular weight of 92.14. It is a polycyclic alicyclic hydrocarbon compound with a highly strained structure, belonging to bridged hydrocarbon derivatives. Its molecular structure contains four ring structures, which are fused with each other to form a highly crowded spatial configuration, endowing it with unique chemical properties and application value. As an important organic functional material, Quadricyclane, with its high reactivity, high energy characteristics and special structural advantages, is widely used in solar energy storage, high-energy fuels, organic synthesis intermediates and other fields. At the same time, due to its flammable and explosive properties, strict safety standards must be followed during production, storage and use, making it a characteristic chemical raw material with both potential and risks in the industrial field.

In terms of physical and chemical properties, Quadricyclane appears as a colorless, transparent and volatile liquid with no obvious odor, and is stable at room temperature and atmospheric pressure. Its core physical and chemical parameters have distinct characteristics: density is about 0.982g/cm³ (25℃), boiling point is 108℃, melting point is -29℃, refractive index is 1.486 (20℃), and vapor pressure is about 3.2kPa (20℃). In terms of solubility, it is almost insoluble in water, easily soluble in organic solvents such as ethanol, ether, benzene and petroleum ether, and can be miscible with most non-polar organic solvents in any proportion. This solubility makes it convenient to be used as a solvent or reaction substrate in organic synthesis reactions. Due to the high strain energy in its molecular structure, Quadricyclane is chemically active and prone to cycloaddition, isomerization and other reactions. It is also relatively sensitive to strong light and high temperature, and is prone to combustion and explosion when exposed to open flames, high temperatures or oxidants. Therefore, it must be stored in a low-temperature environment of 2-8℃, sealed, light-proof and dry, away from fire sources, heat sources and oxidants, and stored separately in an explosion-proof and ventilated dangerous goods warehouse.

In terms of production process, the preparation of Quadricyclane mainly relies on photochemical isomerization reaction. At present, the most mature industrial process uses norbornadiene as the raw material, which undergoes intramolecular isomerization reaction under ultraviolet irradiation or specific catalyst to generate Quadricyclane. The production process mainly includes raw material pretreatment, photochemical isomerization, separation and purification, rectification, drying, packaging and other steps. Among them, photochemical isomerization reaction is the core link, and the reaction temperature, light intensity and reaction time must be strictly controlled to improve the product conversion rate and purity. In addition, it can also be prepared by chemical synthesis, but it has the problems of complex reaction steps, many by-products and low yield, which has not been industrially applied so far. In industrial production, by optimizing the process parameters, the purity of Quadricyclane can reach more than 98%, and the impurity content is controlled below 2%, which meets the industrial grade standards and can meet the application needs of different fields. The packaging adopts explosion-proof sealed containers, with specifications covering 100mL, 500mL, 20L, etc., suitable for laboratory research and industrial large-scale use.

The core value of Quadricyclane lies in its high strain energy and high reactivity, which makes it have irreplaceable application advantages in many high-end fields. Its core applications are concentrated in three major fields: solar energy storage, high-energy fuels and organic synthesis intermediates. In the field of solar energy storage, Quadricyclane and norbornadiene form a reversible isomerization system. Under light conditions, norbornadiene isomerizes into Quadricyclane and stores energy, and can reverse the reaction to release energy under the action of a catalyst, realizing the storage and conversion of solar energy. It is the core component of new solar energy storage materials, widely used in solar heating, energy storage batteries and other fields. In the field of high-energy fuels, due to the high strain energy in its molecular structure, it can release a lot of heat when burned, and its energy density is higher than that of ordinary hydrocarbon fuels. It can be used as an additive for high-energy liquid fuels to improve the combustion efficiency and energy output of fuels, suitable for high-end fields such as aerospace and military.

In the field of organic synthesis, as a high-activity intermediate, Quadricyclane can participate in various reactions such as cycloaddition, ring opening and substitution, and is used to synthesize complex polycyclic compounds, pharmaceutical intermediates, polymer material monomers, etc. Especially in natural product synthesis and drug research and development, it can be used as a key reaction substrate to construct complex ring structures, providing a new reaction path for organic synthesis. In addition, its unique structure also gives it potential application value in the field of materials science, which can be used to prepare high-performance polymer materials, liquid crystal materials, etc. It should be specially noted that Quadricyclane is a flammable and explosive dangerous good, and its vapor can form an explosive mixture with air, which is prone to combustion and explosion when exposed to open flames and high heat. When operating, protective masks, gloves, goggles and other protective equipment must be worn, and the operation must be carried out in a well-ventilated explosion-proof environment. Smoking and open flames are strictly prohibited, and contact with oxidants and acidic substances should be avoided.

With the rapid development of new energy and new material industries, the market demand for Quadricyclane continues to rise, especially in the fields of solar energy storage and high-energy fuels, its application prospects are increasingly broad. At present, the research and development focus of Quadricyclane at home and abroad is on optimizing the production process, improving the yield, reducing the cost, and expanding its application in new energy storage materials, high-end organic synthesis and other fields. In the future, with the continuous upgrading of process technology, Quadricyclane will play a more important role in new energy, new materials, aerospace and other fields. At the same time, its safe use specifications will be further improved, realizing the organic combination of efficient utilization and safety control, and promoting the green and healthy development of related industries.
